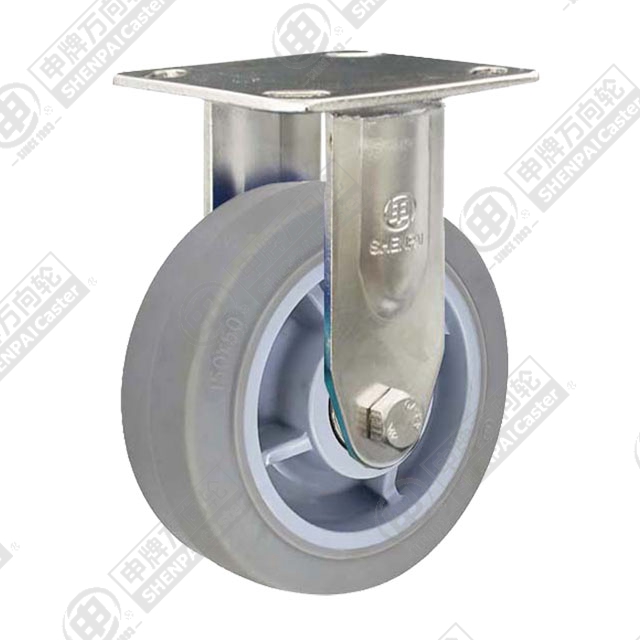

Part number 35D09-1726S
High-quality synthetic rubber material, injection molding, environmental protection and mute, effective protection of the ground, with stainless steel bearings
| Part number | 35D09-1726S |
|---|---|
| Type | Fixed Caster |
| Wheel diameter | 150 mm |
| Wheel width | 50 mm |
| Load capacity (3.2 km/h) | 250 kg |
| Overall height | 190 mm |
| Tread material | Rubber |
| Tread sub-type | Synthetic Rubber |
| Wheel body | Synthetic |
| Frame material | Stainless Steel |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Fitting | Top Plate |
| Top plate size | 115 × 102 |
| Bolt hole spacing | 84 × 70 |
| Min working temperature | -15 °C |
| Max working temperature | 60 °C |
| Tread hardness | 70A |
| Tread colour | Grey |
| Frame colour | Stainless |
| Salt-spray rating | 96 h |
| Catalogue lead time | 5 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 3.2 km/h. They do not cover long-term static parking, shock loads or towing faster than 3.2 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
