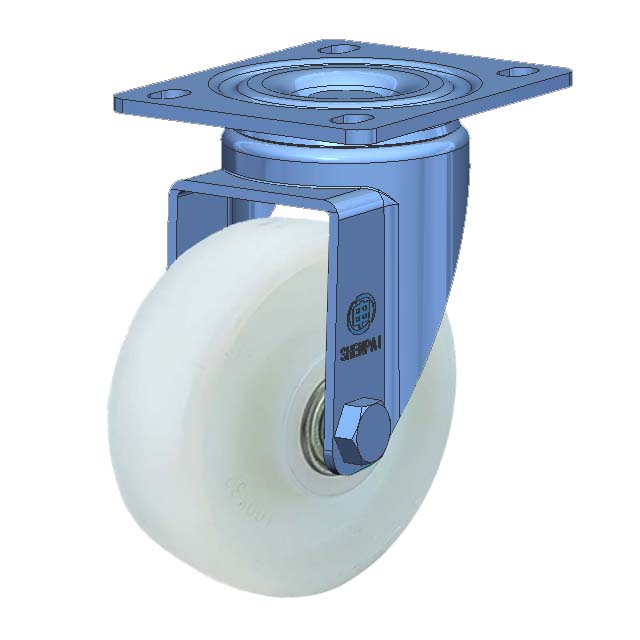

Part number 23A13-1946
精密双轴承，尼龙材质，耐磨损，不易变形，抗老化，耐水解
| Part number | 23A13-1946 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 200 mm |
| Wheel width | 44 mm |
| Load capacity (4 km/h) | 450 kg |
| Overall height | 245 mm |
| Tread material | Nylon |
| Tread sub-type | Nylon 6 |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Fitting | Top Plate |
| Top plate size | 140 × 110 |
| Bolt hole spacing | 105 × 77.5 |
| Min working temperature | -25 °C |
| Max working temperature | 90 °C |
| Tread hardness | 75D |
| Tread colour | White |
| Frame colour | Blue Zinc |
| Salt-spray rating | 48 h |
Load ratings are dynamic values tested to ISO 22883 / EN 12532 at 4 km/h on a level floor. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
