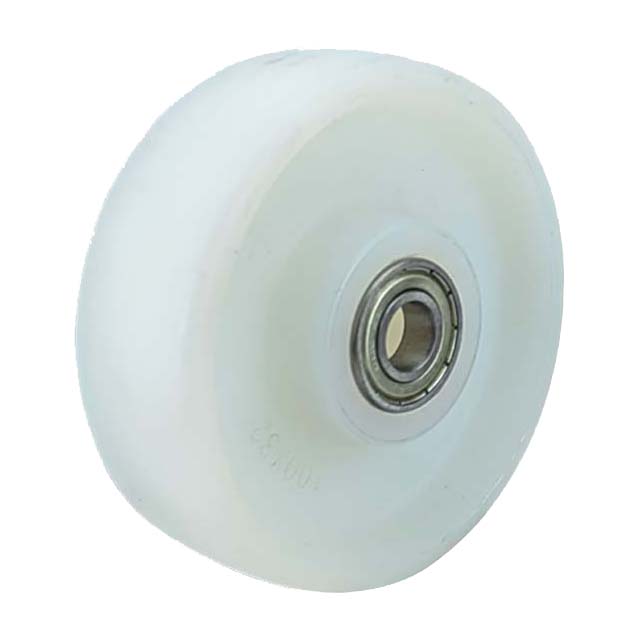

Part number 23A-2003
精密双轴承，尼龙材质，耐磨损，不易变形，抗老化，耐水解
| Part number | 23A-2003 |
|---|---|
| Type | Standard Wheel |
| Wheel diameter | 100 mm |
| Wheel width | 38 mm |
| Load capacity (4 km/h) | 200 kg |
| Tread material | Nylon |
| Tread sub-type | Nylon 6 |
| Wheel body | Synthetic |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Min working temperature | -25 °C |
| Max working temperature | 90 °C |
| Tread hardness | 75D |
| Tread colour | White |
| Salt-spray rating | 48 h |
Load ratings are dynamic values tested to ISO 22883 / EN 12532 at 4 km/h on a level floor. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
