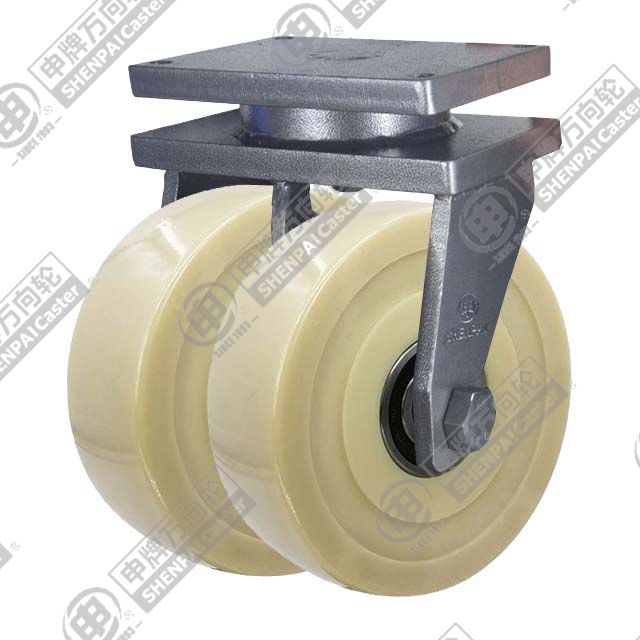

Part number 42B13-1443
Nylon overall pressure casting molding, high load, wear-resistant, not easy to deform, anti-aging, hydrolysis resistance
| Part number | 42B13-1443 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 350 mm |
| Wheel width | 100 mm |
| Load capacity (4 km/h) | 18001 kg |
| Overall height | 475 mm |
| Tread material | Nylon |
| Tread sub-type | Nylon 6 |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Fitting | Top Plate |
| Top plate size | 320 × 320 |
| Bolt hole spacing | 270 × 270 |
| Swivel radius | 308 mm |
| Min working temperature | -25 °C |
| Max working temperature | 90 °C |
| Tread hardness | 75D |
| Tread colour | White |
| Frame colour | Black |
| Salt-spray rating | 72 h |
| Catalogue lead time | 15 days |
Load ratings are dynamic values tested to ISO 22883 / EN 12532 at 4 km/h on a level floor. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.

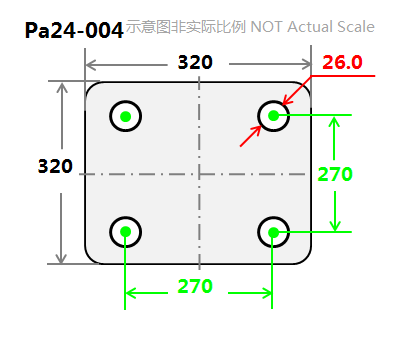

Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
