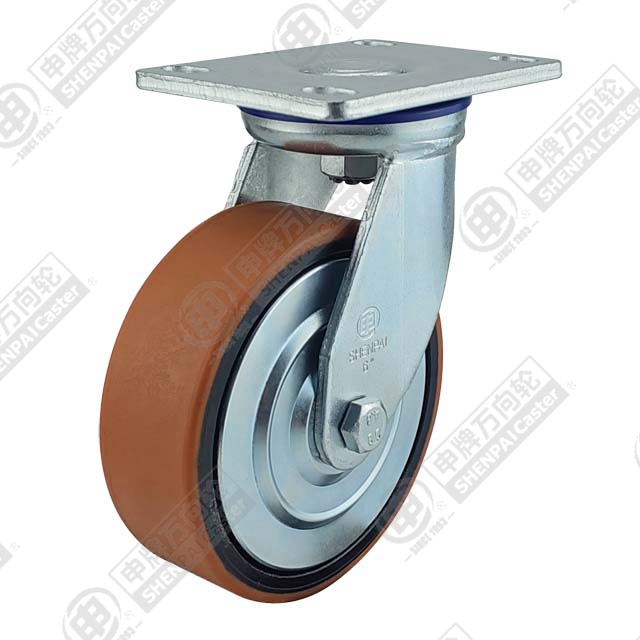

Part number 36A07-1972
The cast iron core is made of polyurethane, oil-resistant, wear-resistant, durable, environmentally friendly, quiet, easy to start, push to save energy, and effectively protect the ground.
| Part number | 36A07-1972 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 150 mm |
| Wheel width | 50 mm |
| Load capacity (4 km/h) | 550 kg |
| Overall height | 201 mm |
| Tread material | Polyurethane |
| Tread sub-type | Cast PU |
| Wheel body | Metal |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Fitting | Top Plate |
| Top plate size | 140 × 110 |
| Bolt hole spacing | 110 × 75 |
| Swivel radius | 122 mm |
| Min working temperature | -20 °C |
| Max working temperature | 80 °C |
| Tread hardness | 95A |
| Tread colour | Yellow |
| Frame colour | Blue Zinc |
| Salt-spray rating | 72 h |
| Catalogue lead time | 7 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
