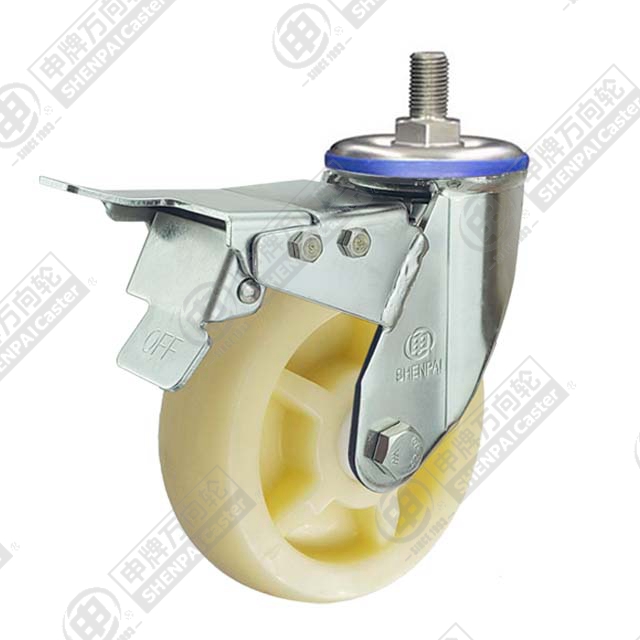

Part number 35D22-1422
Polypropylene material, overall injection molding, lightweight, economical and durable, not easy to deform, anti-aging, hydrolysis resistance
| Part number | 35D22-1422 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 200 mm |
| Wheel width | 45 mm |
| Load capacity (4 km/h) | 280 kg |
| Overall height | 240 mm |
| Tread material | Polypropylene |
| Wheel body | Synthetic |
| Frame material | Stainless Steel |
| Bearing | Slide Bearing |
| Brake | Total Lock |
| Fitting | Threaded Stem |
| Stem thread × length | M20 × 45 |
| Swivel radius | 173 mm |
| Min working temperature | -20 °C |
| Max working temperature | 70 °C |
| Tread hardness | 75D |
| Tread colour | White |
| Frame colour | Stainless |
| Salt-spray rating | 96 h |
| Catalogue lead time | 15 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
