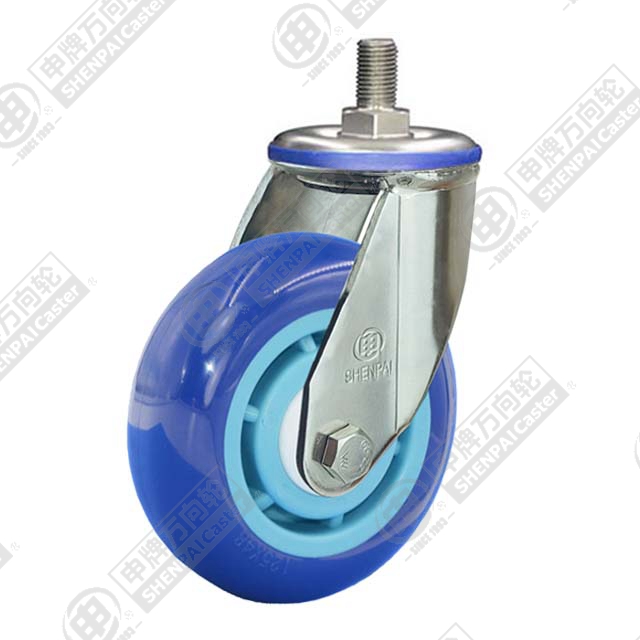

Part number 35D21-1414
Injection molded super polyurethane material, locking injection molding, oil-resistant, wear-resistant, environmentally friendly and quiet, effective protection of the floor
| Part number | 35D21-1414 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Load capacity (4 km/h) | 280 kg |
| Overall height | 240 mm |
| Tread material | Polyurethane |
| Tread sub-type | Cast PU |
| Wheel body | Synthetic |
| Frame material | Stainless Steel |
| Bearing | Slide Bearing |
| Brake | No Brake |
| Fitting | Threaded Stem |
| Stem thread × length | M20 × 45 |
| Swivel radius | 156 mm |
| Min working temperature | -20 °C |
| Max working temperature | 70 °C |
| Tread hardness | 95A |
| Tread colour | Blue |
| Frame colour | Stainless |
| Salt-spray rating | 96 h |
| Catalogue lead time | 15 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
