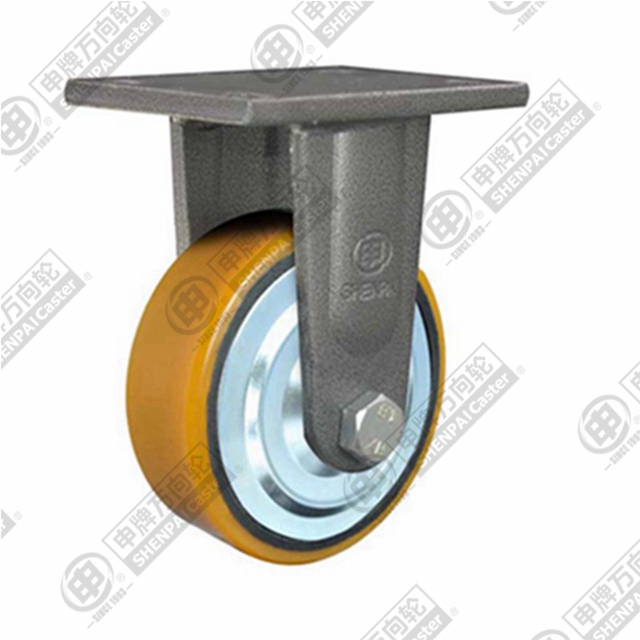

Part number 35B03-0133
Cast iron core with poured polyurethane tread. Oil-resistant, wear-resistant and durable; runs quietly and is easy on the floor.
| Part number | 35B03-0133 |
|---|---|
| Type | Fixed Caster |
| Wheel diameter | 125 mm |
| Wheel width | 48 mm |
| Load capacity (4 km/h) | 480 kg |
| Overall height | 175 mm |
| Tread material | Polyurethane |
| Tread sub-type | Cast PU |
| Wheel body | Metal |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | Direction Lock |
| Fitting | Top Plate |
| Top plate size | 140 × 110 |
| Bolt hole spacing | 110 × 75 |
| Min working temperature | -20 °C |
| Max working temperature | 70 °C |
| Tread hardness | 95A |
| Tread colour | Yellow |
| Frame colour | Black |
| Salt-spray rating | 72 h |
| Gross weight | 27.4 kg |
| Catalogue lead time | 7 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
