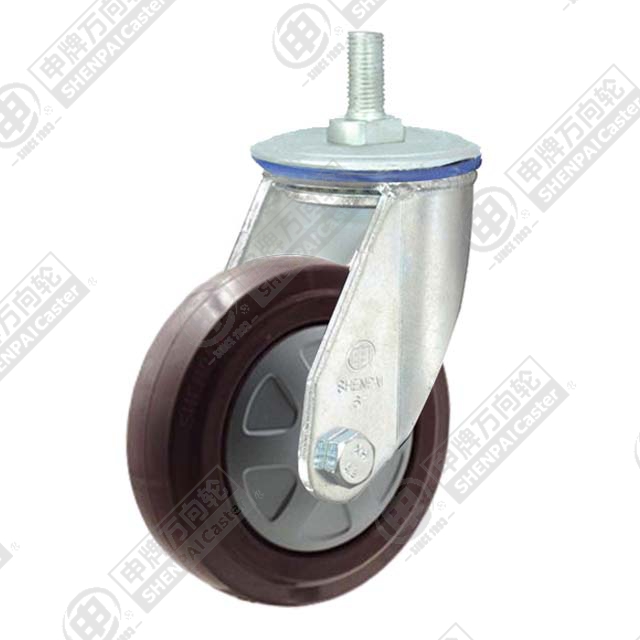

Part number 35A95-1545
Vulcanised natural rubber tread. High resilience, runs quietly and is easy on the floor.
| Part number | 35A95-1545 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 100 mm |
| Wheel width | 45 mm |
| Load capacity (4 km/h) | 170 kg |
| Overall height | 145 mm |
| Tread material | Rubber |
| Tread sub-type | Natural Rubber |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Fitting | Threaded Stem |
| Stem thread × length | M20 × 32 |
| Swivel radius | 87 mm |
| Min working temperature | -20 °C |
| Max working temperature | 70 °C |
| Tread hardness | 75A |
| Tread colour | Brown |
| Frame colour | Blue Zinc |
| Salt-spray rating | 72 h |
| Catalogue lead time | 15 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
