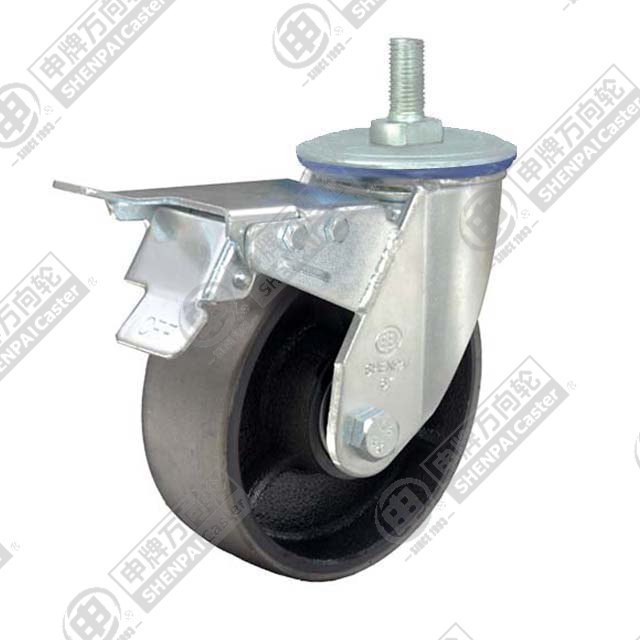

Part number 35A94-1125
Cast iron material, sand turning integral molding, high load bearing, high temperature resistance
| Part number | 35A94-1125 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 125 mm |
| Wheel width | 48 mm |
| Load capacity (4 km/h) | 380 kg |
| Overall height | 165 mm |
| Tread material | Cast Iron |
| Tread sub-type | Grey Iron |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | Total Lock |
| Fitting | Threaded Stem |
| Stem thread × length | M20 × 32 |
| Swivel radius | 147 mm |
| Min working temperature | -40 °C |
| Max working temperature | 400 °C |
| Tread hardness | 200HB |
| Tread colour | Black |
| Frame colour | Blue Zinc |
| Salt-spray rating | 72 h |
| Gross weight | 30 kg |
| Catalogue lead time | 15 days |
Load ratings are dynamic values tested to ISO 22883 / EN 12532 at 4 km/h on a level floor. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
