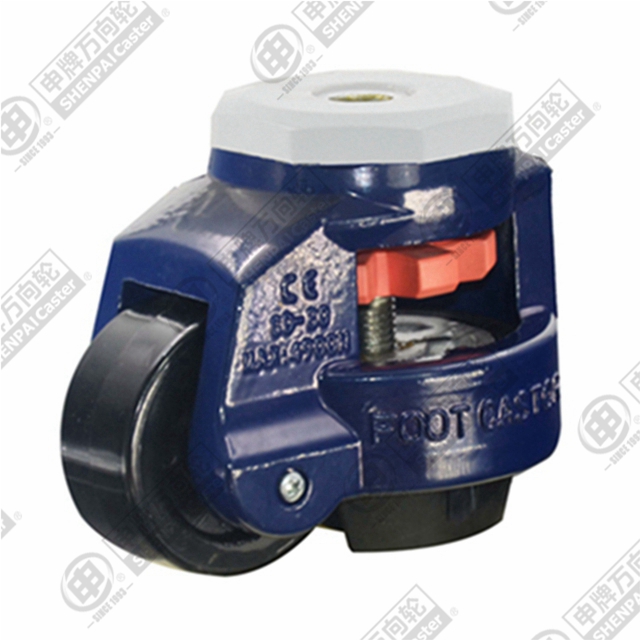

Part number 32A09-1613
Nylon material overall injection molding, high load, wear-resistant, not easy to deform, anti-aging, hydrolysis resistance
| Part number | 32A09-1613 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 65 mm |
| Wheel width | 30 mm |
| Load capacity (4 km/h) | 500 kg |
| Overall height | 103 mm |
| Tread material | Nylon |
| Tread sub-type | Nylon 6 |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Slide Bearing |
| Brake | No Brake |
| Fitting | Bolt Hole |
| Bolt / hole size | M14 |
| Swivel radius | 76 mm |
| Min working temperature | -20 °C |
| Max working temperature | 90 °C |
| Tread hardness | 75D |
| Tread colour | Black |
| Frame colour | Black |
| Salt-spray rating | 72 h |
| Gross weight | 15.5 kg |
| Catalogue lead time | 15 days |
Load ratings are dynamic values tested to ISO 22883 / EN 12532 at 4 km/h on a level floor. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
