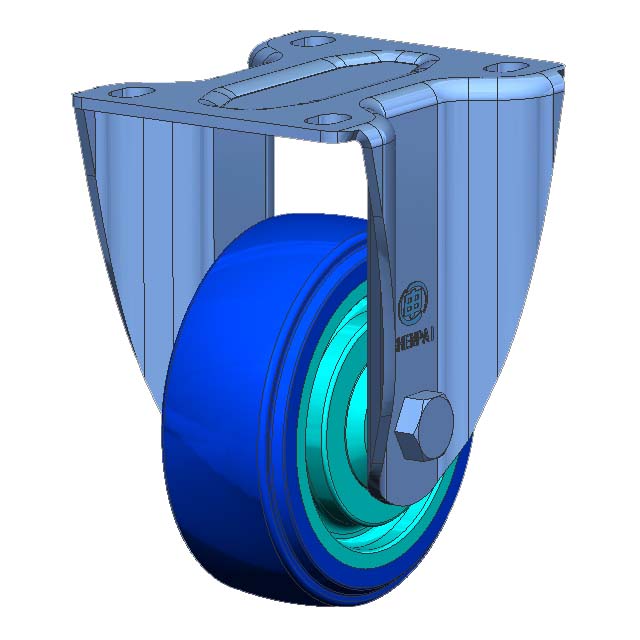

Part number 23A03-1998
Injection-moulded polyurethane tread with an interlocking bond. Oil- and wear-resistant, runs quietly and is easy on the floor.
| Part number | 23A03-1998 |
|---|---|
| Type | Fixed Caster |
| Wheel diameter | 75 mm |
| Wheel width | 32 mm |
| Load capacity (4 km/h) | 120 kg |
| Overall height | 108 mm |
| Tread material | Polyurethane |
| Tread sub-type | Cast PU |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Fitting | Top Plate |
| Top plate size | 105 × 80 |
| Bolt hole spacing | 80 × 60 |
| Min working temperature | -20 °C |
| Max working temperature | 70 °C |
| Tread hardness | 93A |
| Tread colour | Blue |
| Frame colour | Blue Zinc |
| Salt-spray rating | 48 h |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
