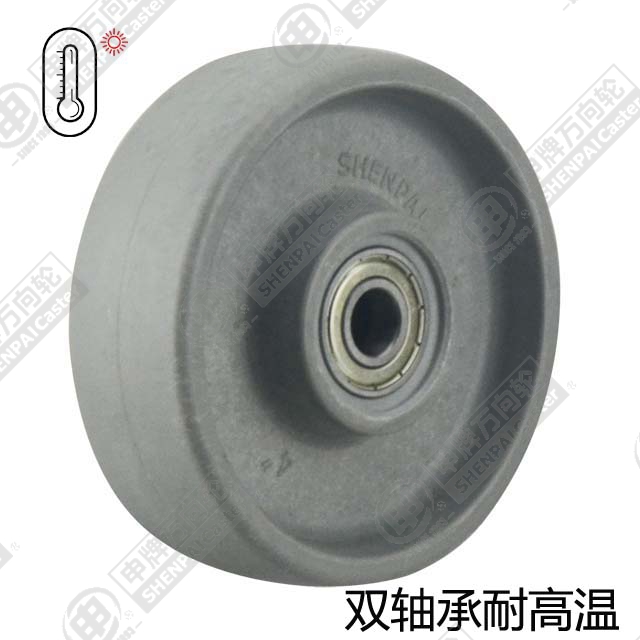

Part number 20D-1491
Precision high-temperature bearings, high-temperature resistant, reinforced high-temperature resistant nylon material, high-temperature resistant 280 degrees, wear-resistant, not easy to deform, anti-aging, hydrolysis-resistant
| Part number | 20D-1491 |
|---|---|
| Type | Standard Wheel |
| Wheel diameter | 75 mm |
| Wheel width | 32 mm |
| Load capacity (4 km/h) | 100 kg |
| Tread material | Nylon |
| Tread sub-type | Nylon 6 |
| Wheel body | Synthetic |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Min working temperature | -20 °C |
| Max working temperature | 280 °C |
| Tread hardness | 75D |
| Tread colour | Grey |
| Salt-spray rating | 72 h |
| Catalogue lead time | 2 days |
Load ratings are dynamic values tested to ISO 22883 / EN 12532 at 4 km/h on a level floor. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
