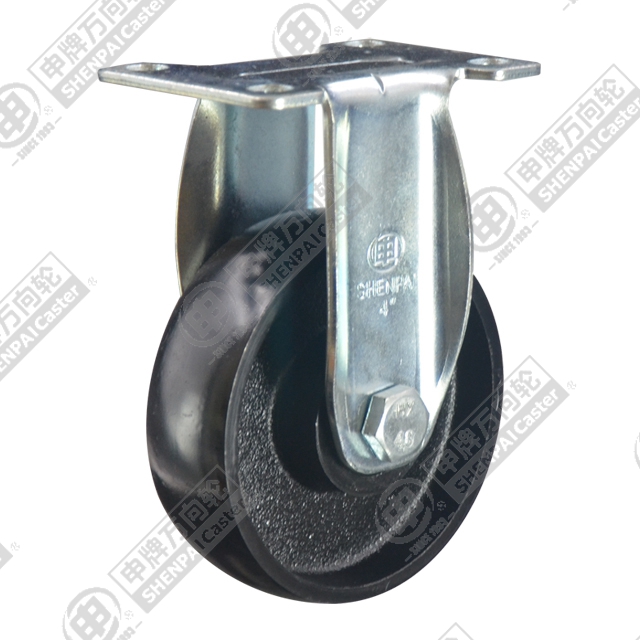

Part number 20AB3-1038
Cast iron material, sand turning integral molding, high load bearing, high temperature resistance
| Part number | 20AB3-1038 |
|---|---|
| Type | Fixed Caster |
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Load capacity (4 km/h) | 150 kg |
| Overall height | 135 mm |
| Tread material | Cast Iron |
| Tread sub-type | Grey Iron |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Fitting | Top Plate |
| Top plate size | 92 × 64 |
| Bolt hole spacing | 73 × 45 |
| Min working temperature | -40 °C |
| Max working temperature | 400 °C |
| Tread hardness | 200HB |
| Tread colour | Black |
| Frame colour | Blue Zinc |
| Salt-spray rating | 72 h |
| Gross weight | 15.9 kg |
| Catalogue lead time | 3 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
