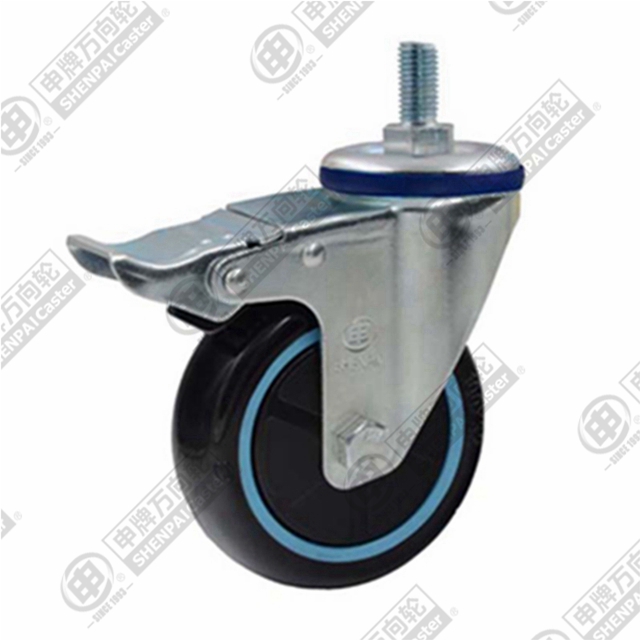

Part number 20AA7-1356
Injection molded super polyurethane material, locking injection molding, oil-resistant, wear-resistant, environmentally friendly and quiet, effective protection of the floor
| Part number | 20AA7-1356 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 125 mm |
| Wheel width | 32 mm |
| Load capacity (4 km/h) | 140 kg |
| Overall height | 163 mm |
| Tread material | Polyurethane |
| Tread sub-type | Cast PU |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | Total Lock |
| Fitting | Threaded Stem |
| Stem thread × length | M12 × 25 |
| Swivel radius | 115 mm |
| Min working temperature | -20 °C |
| Max working temperature | 70 °C |
| Tread hardness | 98A |
| Tread colour | Black |
| Frame colour | Blue Zinc |
| Salt-spray rating | 72 h |
| Gross weight | 15 kg |
| Catalogue lead time | 7 days |
Load ratings are dynamic values tested to ISO 22883 / EN 12532 at 4 km/h on a level floor. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
