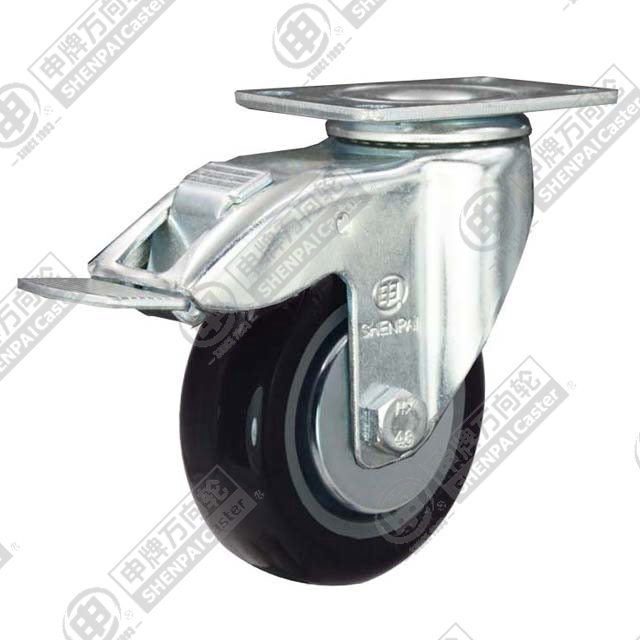

Part number 20A61-1018
Injection molded nylon material, locking injection molding, wear-resistant, durable, not easy to deform, anti-aging, hydrolysis resistance, with metal cover, anti-tangle
| Part number | 20A61-1018 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 75 mm |
| Wheel width | 30 mm |
| Load capacity (4 km/h) | 105 kg |
| Overall height | 108 mm |
| Tread material | Nylon |
| Tread sub-type | Nylon 6 |
| Wheel body | Synthetic |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | Total Lock |
| Fitting | Top Plate |
| Top plate size | 92 × 64 |
| Bolt hole spacing | 73 × 45 |
| Swivel radius | 127 mm |
| Min working temperature | -20 °C |
| Max working temperature | 80 °C |
| Tread hardness | 75D |
| Tread colour | Red |
| Frame colour | Blue Zinc |
| Salt-spray rating | 72 h |
| Catalogue lead time | 15 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
