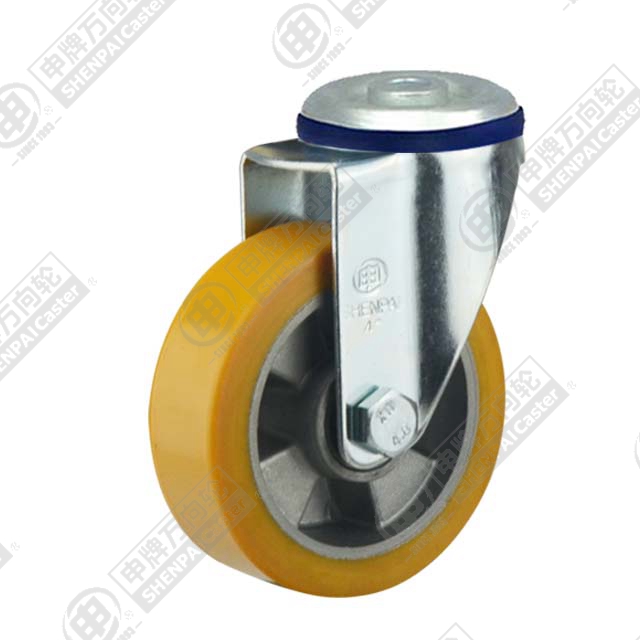

Part number 20A35-1417
Cast aluminum core polyurethane material, high load-bearing, wear-resistant, oil-resistant, environmentally friendly and quiet, effective protection of the floor.
| Part number | 20A35-1417 |
|---|---|
| Type | Swivel Caster |
| Wheel diameter | 125 mm |
| Wheel width | 32 mm |
| Load capacity (4 km/h) | 230 kg |
| Overall height | 159 mm |
| Tread material | Polyurethane |
| Tread sub-type | Cast PU |
| Wheel body | Metal |
| Frame material | Steel |
| Bearing | Ball Bearing |
| Brake | No Brake |
| Fitting | Bolt Hole |
| Bolt / hole size | M12 |
| Swivel radius | 96 mm |
| Min working temperature | -20 °C |
| Max working temperature | 70 °C |
| Tread hardness | 95A |
| Tread colour | Yellow |
| Frame colour | Blue Zinc |
| Salt-spray rating | 72 h |
| Gross weight | 15 kg |
| Catalogue lead time | 15 days |
Load ratings are dynamic values to ISO 22883 / EN 12532, which covers applications up to 4 km/h. This rating was measured on a level floor at 4 km/h. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
Mounting dimensions in mm. Schematic drawing, not to scale.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
