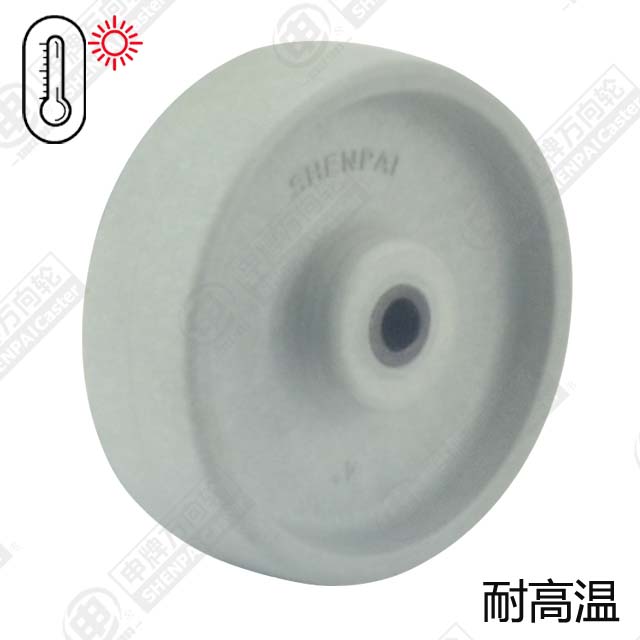

Part number 20A-1464
High temperature resistant, reinforced high temperature resistant nylon material, high temperature resistant 280 degrees, wear resistant, not easy to deform, anti-aging, hydrolysis resistant
| Part number | 20A-1464 |
|---|---|
| Type | Standard Wheel |
| Wheel diameter | 125 mm |
| Wheel width | 32 mm |
| Load capacity (4 km/h) | 145 kg |
| Tread material | Nylon |
| Tread sub-type | Nylon 6 |
| Wheel body | Synthetic |
| Bearing | Slide Bearing |
| Brake | No Brake |
| Min working temperature | -20 °C |
| Max working temperature | 280 °C |
| Tread hardness | 75D |
| Tread colour | Grey |
| Salt-spray rating | 72 h |
| Catalogue lead time | 2 days |
Load ratings are dynamic values tested to ISO 22883 / EN 12532 at 4 km/h on a level floor. They do not cover long-term static parking, shock loads or towing faster than 4 km/h — send us the application and we will confirm the choice.
We reply with price and lead time. Tell us the load per caster, the floor and the operating temperature and we will confirm this is the right caster before you order.
