1"Micro Duty White PP Swivel Caster Wheel

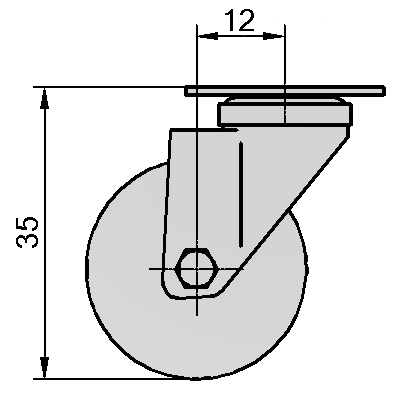

Specification: 1inch, SGS ISO Diameter: 25mm Style Name: Micro Duty Material: PP Overall Height: 35mm Plate Size: 38mmx33mm Plate Hole Spacing(a): 30mmx24mm Offset: 12mm Aperture: 4.2mm Trademark: SHENPAI T ransport Package: Export Carton Packing Origin: Jiangsu China HS Code: 8716900000
  • 10A01-1001
  • SHENPAI
  • PP
  • <=50 kgs
  • 65 Shore A
  • None
  • -15℃~50℃
Availability:

Product Description

Product Description


Bracket Feature:
>Micro Bracket
>Galvanized bracket
Wheel Feature:
>Injection wheel
Hardness:100A
Brake Force:60-80N       Abrasion test:&le;3.6%
Starting Thrust:5-30N

Fix type
Wheel Dia Order No. Capacity(kg) Tyre width(mm) pcs/CTN G.W(kg)
Swivel       1" 10A01-1001        10          13      700   25
     1.25" 10A04-1002        16          13      500   21

     1.5" 10A07-1003        20          17      300   18

      2" 10A12-1004        30          22      150   23

    2.5" 10A17-1005        40          27        80   21

      3" 10A22-1006        50          27        60   17

Payment and delivery:
1. Payment: By T/T. 40% advance payment, the balance before shipment
2. Delivery time: According to order quantity. Shipped within three weeks after receiving the down payment

Sample service
Sample       Available
Sample fee Paid by customer, but can be refund when mass production
Delivery feeSend by express or by air, paid by customer, but can be refund after mass production
